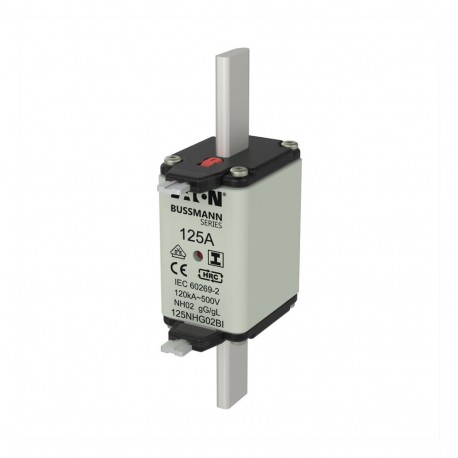

EATON - MOELLER NH FUSE 125A 500V GL/GG SIZE 02 NH FUSE 125A 500V GL/GG SIZE 02 125NHG02BI EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH02, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 125A 500V GL/GG SIZE 02 125NHG02BI EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH02, gL/gG, IEC, ..

NH FUSE 125A 500V GL/GG SIZE 02

125NHG02BI

125NHG02BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 125 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 125A 500V GL/GG SIZE 02 Fuse, Fuse-link, low voltage, 125 A, AC 500 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller NH FUSE 125A 500V GL/GG SIZE 02 is a low-voltage blade-type fuse built to interrupt high fault currents and protect industrial power distribution networks. These units are commonly inserted into fuse-switch disconnectors within electrical panels to ensure safe load isolation and cable defense. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269: NH02
  • Voltage type: AC
  • Rated current: 125 A
  • Rated voltage AC: 500 V
  • Rated switching capacity AC: 120 kA
  • Utilization category according to IEC 60269: gG (cable protection/equipment protection)
  • Type of fuse status indicator: Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL): Yes
  • Power loss at rated current: 12 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
125NHG02BI
Model Code
NH FUSE 125A 500V GL/GG SIZE 02
EAN
5027590430067
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
39 mm
Product Weight
0.409 kg
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
125 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH02
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch BVL50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
