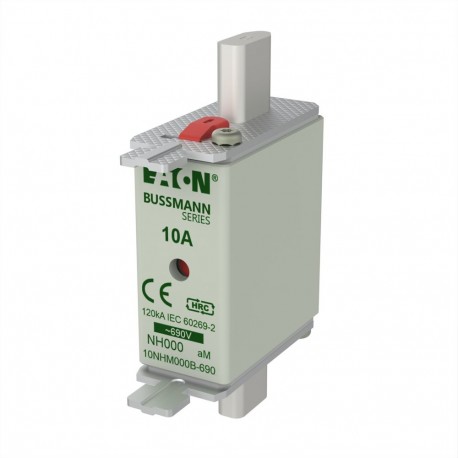

NH FUSE 10AMP 690V aM SIZE 000 10NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 80 A, AC 690 V, size 000,..
NH FUSE 10AMP 690V aM SIZE 000
10NHM000B690
10NHM000B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NH FUSE 10AMP 690V aM SIZE 000 is designed to protect motor control circuits and associated switching gear from short-circuit damage. Utilization categories of this type allow fuses to tolerate high motor startup surges while safely interrupting sustained fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH000
- Voltage type (EF000187): AC
- Rated current (EF000227): 10 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 0.5 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
