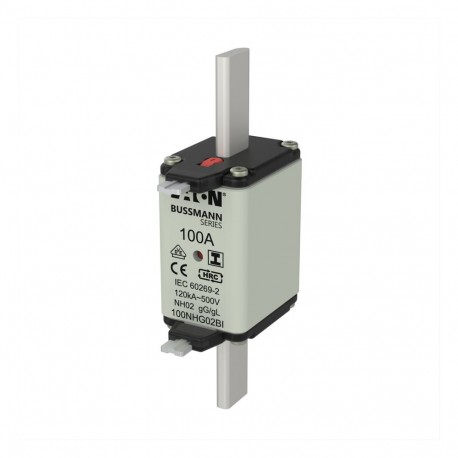

NH FUSE 100A 500V GL/GG SIZE 02 100NHG02BI EATON ELECTRIC Fuse-link, LV, 100 A, AC 500 V, NH02, gL/gG, IEC, ..
NH FUSE 100A 500V GL/GG SIZE 02
100NHG02BI
100NHG02BI
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A low-voltage cartridge fuse-link is deployed in industrial switchgear to protect electrical circuits from overloads and short-circuit events. The Eaton Moeller NH FUSE 100A 500V GL/GG SIZE 02 component ensures dependable circuit isolation across general industrial power distribution architecture.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH02
- Voltage type (EF000187): AC
- Rated current (EF000227): 100 A
- Rated voltage AC (EF007682): 500 V
- Rated switching capacity AC (EF017698): 120 kA
- Rated voltage DC (EF012281): None V
- Rated switching capacity DC (EF017699): None kA
- Utilization category according to IEC 60269 (EF002572): gG
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): true
- Power loss at rated current (EF012389): 7.5 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
