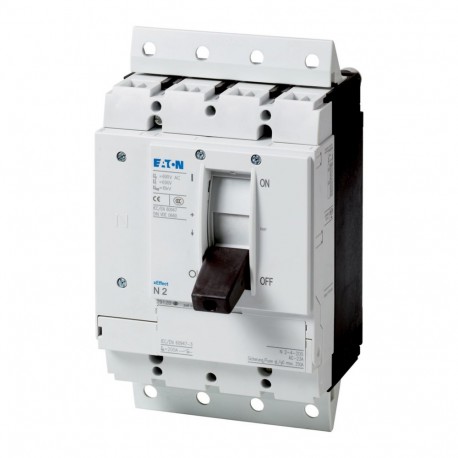

N2-4-200-SVE 113737 Y7-113737 EATON ELECTRIC Switch-disconnector 4p 200A +pull out
N2-4-200-SVE
113737
Y7-113737
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing reliable circuit interruption across four poles, the Eaton Moeller N2-4-200-SVE switch-disconnector manages high-amperage power distribution in demanding plants. Industrial engineers utilize multi-pole disconnectors as main or maintenance switches to guarantee safe electrical isolation during equipment servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 3.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 110 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
- Number of poles (EF001391): 4
More info
▲General specifications
IEC
Product specifications
Version as main switch
Version as emergency stop installation
Version as maintenance-/service switch
Intermediate mounting
Distribution board installation
Built-in device plug-in technique
Plug-in unit
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
Other
250 A (415 V AC-22/23A, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP20
IP10 (tunnel terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched)
7500 operations at 415 V AC-1
5000 operations at 690 V AC-1
7500 operations at 400 V AC-1
4000 operations at 690 V AC-3
6000 operations at 400 V AC-3
Interlockable
Voltage release optional
100 kA at 400/415 V
PN2(N2)-160…250: 250 AgGgL
PN2(N2)-160…250: 250 AgGgL
100 kA at 400/415 V
Min. 16 mm x 5 mm direct at switch rear-side connection
M8 at rear-side screw connection
6 mm² - 16 mm² (2x) at box terminal
6 mm² - 16 mm² (2x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
25 mm² - 70 mm² (2x) at box terminal
25 mm² - 185 mm² (1x) at box terminal
25 mm² - 185 mm² (1x) direct at switch rear-side connection
