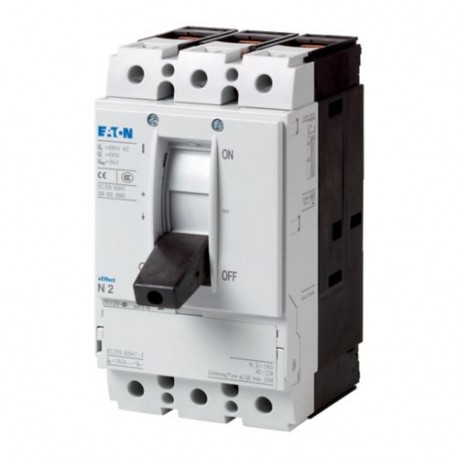

N2-200-BT 110312 Y7-110312 EATON ELECTRIC Switch-disconnector 3p 200A terminals
N2-200-BT
110312
Y7-110312
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller N2-200-BT is a heavy-duty switch-disconnector designed to provide safe circuit breaking and electrical isolation for high-current industrial installations. Such devices handle main power disconnect duties, ensuring that downstream electrical equipment remains completely safe during maintenance work. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 3.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 110 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
- Number of poles (EF001391): 3
More info
▲General specifications
IEC
Product specifications
Version as emergency stop installation
Motor drive optional
Version as maintenance-/service switch
Distribution board installation
Intermediate mounting
Fixed
Ground mounting
Damp heat, cyclic, to IEC 60068-2-30
300 V AC (between the auxiliary contacts)
Other
250 A (690 V AC-22/23A, making and breaking capacity)
IP40 (with insulating surround)
IP20
IP00 (terminations, phase isolator and band terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal
7500 operations at 415 V AC-3
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
7500 operations at 400 V AC-3
5000 operations at 690 V AC-3
Interlockable
Voltage release optional
100 kA at 400/415 V
80 kA at 690 V
PN2(N2)-160…250: 250 AgGgL
80 kA at 690 V
M8 at rear-side screw connection
Min. 16 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
6 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (2x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) direct at switch rear-side connection
25 mm² - 70 mm² (2x) at box terminal
25 mm² - 70 mm² (2x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
