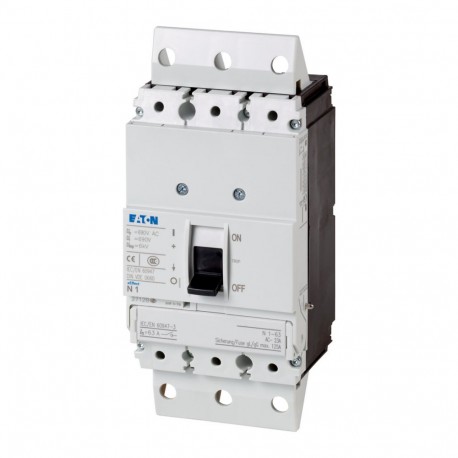

N1-63-SVE 113729 Y7-113729 EATON ELECTRIC Switch-disconnector 3p 63A +pull out
N1-63-SVE
113729
Y7-113729
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for secure load interruption, an Eaton Moeller switch-disconnector combines the functions of a disconnector and a load break switch in a single modular unit. These devices are frequently integrated into electrical distribution boards to safely sever power feeds prior to maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Version as switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
IEC
Product specifications
Version as emergency stop installation
Version as main switch
Ground mounting
Intermediate mounting
Built-in device plug-in technique
Distribution board installation
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
Other
160 A (415 V AC-22/23A, making and breaking capacity)
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and band terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
7500 operations at 690 V AC-1
1000 operations at 400 V AC-23A
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
1000 operations at 690 V AC-23A
Interlockable
Voltage release optional
63 gG/gL
100 kA at 400/415 V
63 gG/gL
100 kA at 400/415 V
Min. 12 mm x 5 mm direct at switch rear-side connection
M6 at rear-side screw connection
10 mm² - 16 mm² (1x) at box terminal
6 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
10 mm² - 16 mm² (2x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) direct at switch rear-side connection
6 mm² - 25 mm² (2x) at box terminal
25 mm² - 95 mm² (1x) at 1-hole tunnel terminal
25 mm² (2x) direct at switch rear-side connection
25 mm² - 70 mm² (1x) direct at switch rear-side connection
Terminal capacity hint: Up to 95 mm² can be connected depending on the cable manufacturer
