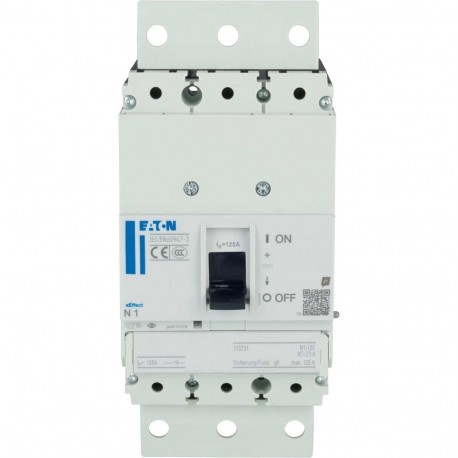

N1-125-SVE 113731 Y7-113731 EATON ELECTRIC Switch-disconnector 3p 125A +pull out
N1-125-SVE
113731
Y7-113731
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for robust industrial power management, the EATON ELECTRIC Switch-disconnector 3p 125A +pull out enables safe electrical disconnection and load interruption in distribution boards. Switch-disconnectors are essential for isolating sub-circuits to allow safe servicing without powering down entire facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
IEC/EN 60947
Product specifications
Version as main switch
Version as emergency stop installation
Built-in device plug-in technique
Intermediate mounting
Plug-in unit
Distribution board installation
Damp heat, cyclic, to IEC 60068-2-30
300 V AC (between the auxiliary contacts)
Other
160 A (690 V AC-22/23A, making and breaking capacity)
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
1000 operations at 415 V AC-23A
7500 operations at 690 V AC-1
10000 operations at 415 V AC-1
1000 operations at 690 V AC-23A
10000 operations at 400 V AC-1
Interlockable
Voltage release optional
100 kA at 400/415 V
80 kA at 690 V
10 kA at 690 V
125 gG/gL
M6 at rear-side screw connection
Max. 16 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
6 mm² - 16 mm² (2x) at box terminal
10 mm² - 16 mm² (1x) at box terminal
6 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (2x) direct at switch rear-side connection
6 mm² - 25 mm² (2x) at box terminal
25 mm² - 95 mm² (1x) at 1-hole tunnel terminal
Terminal capacity hint: Up to 95 mm² can be connected depending on the cable manufacturer
25 mm² (2x) direct at switch rear-side connection
10 mm² - 70 mm² (1x) at box terminal
