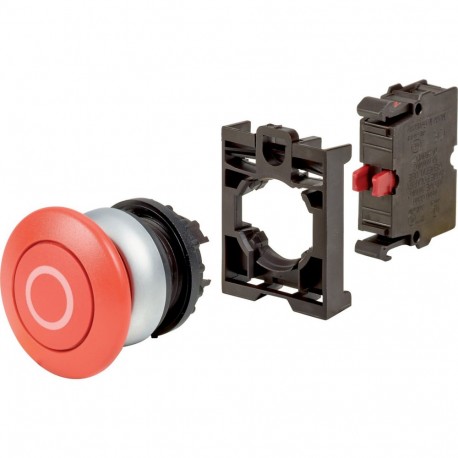

EATON - MOELLER M22-DP-R-X0-K01-BVP M22-DP-R-X0-K01-BVP 132623 Y7-132623 EATON ELECTRIC Mushroom actuators, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DP-R-X0-K01-BVP 132623 Y7-132623 EATON ELECTRIC Mushroom actuators, complete device

M22-DP-R-X0-K01-BVP

132623

Y7-132623

EATON - MOELLER

1 Pcs.

Mushroom actuators, complete device M22-DP-R-X0-K01-BVP Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, 1 NO, red, inscribed, Blister pack for hanging Mushroom actuator, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-DP-R-X0-K01-BVP Eaton Moeller complete mushroom actuator device provides an integrated panel-mount solution for issuing manual stop or control commands in automated processes. These pre-assembled units streamline installation on industrial control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
132623
Model Code
M22-DP-R-X0-K01-BVP
EAN
4015081295685
Product Length/Depth
40 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.03 kg
Compliances
CE

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
