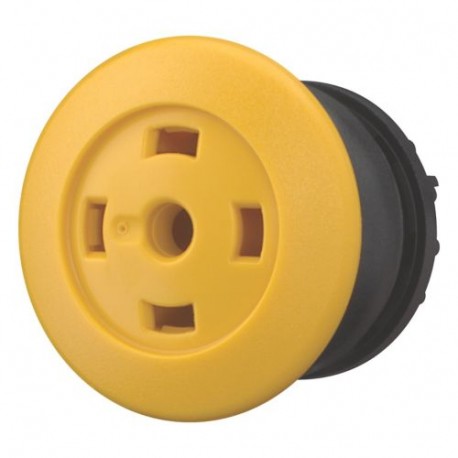

EATON - MOELLER M22S-DP-Y-X M22S-DP-Y-X 216739 Y7-216739 EATON ELECTRIC Mushroom actuator, yellow, without button plate, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DP-Y-X 216739 Y7-216739 EATON ELECTRIC Mushroom actuator, yellow, without button plate, momentary

M22S-DP-Y-X

216739

Y7-216739

EATON - MOELLER

1 Pcs.

Mushroom actuator, yellow, without button plate, momentary M22S-DP-Y-X Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom yellow, Without button plate, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: yellow, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DP-Y-X mushroom actuator provides a spring-return operator interface for industrial control enclosures, designed for momentary switching actions on automation consoles. Such components are typically mounted on machinery dashboards for routine operational commands. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Yellow
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216739
Model Code
M22S-DP-Y-X
EAN
4015082167394
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
UL File No.: E29184
VDE 0660
CSA
UL 508
IEC/EN 60947
UL
CSA File No.: 012528
IEC/EN 60947-5
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
