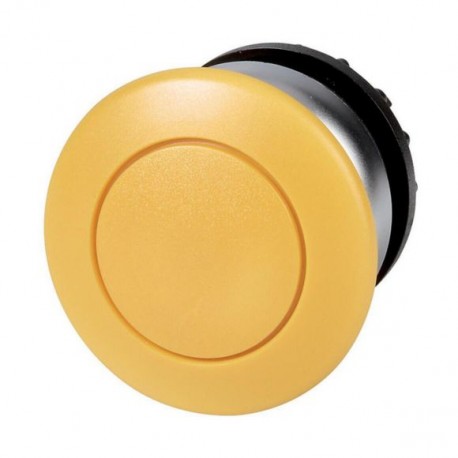

M22-DP-Y 216718 Y7-216718 EATON ELECTRIC Mushroom actuator, yellow, momentary
M22-DP-Y
216718
Y7-216718
EATON - MOELLER
5 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller mushroom actuator (part number M22-DP-Y 216718) functions as a flat operator control element designed for standard machine interaction on control panels. These spring-return devices enable momentary signal inputs in automated manufacturing systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 36.5 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
More info
▲General specifications
EN 60947-5
UL 508
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 94-91
IEC/EN 60947-5
VDE 0660
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CE
UL
IEC/EN 60947
CSA
CSA File No.: 012528
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X, 13
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Momentary
