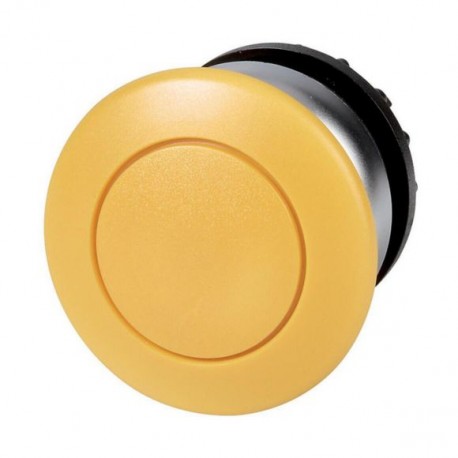

EATON - MOELLER M22-DRP-Y M22-DRP-Y 216749 Y7-216749 EATON ELECTRIC Mushroom actuator, yellow, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRP-Y 216749 Y7-216749 EATON ELECTRIC Mushroom actuator, yellow, maintained

M22-DRP-Y

216749

Y7-216749

EATON - MOELLER

5 Pcs.

Mushroom actuator, yellow, maintained M22-DRP-Y Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, maintained, Mushroom yellow, yellow, Blank, Bezel: titanium Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, maintained, Color Mushroom: yellow, button plate: yellow, Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: maintained, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216749
Model Code
M22-DRP-Y
EAN
4015082167493
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL 508
VDE
CSA Class No.: 3211-03
IEC/EN 60947-5
VDE 0660
CSA
UL
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA File No.: 012528
UL Category Control No.: NKCR
DNV
GL
LR

ETIM for 216749 Low-voltage industrial controls and switchgear (EC001038)
Feature Name Feature Value
Colour button (EF000190) Yellow
Construction type lens (EF006253) Round
Diameter cap (EF001423) 36.5 mm
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13
Type of button (EF001546) Flat
Suitable for lighting (EF001142) No
With lighting (EF003829) No
Supply voltage lamp (EF006522) 0 V
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) Yes
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Chrome
Suitable for emergency stop (EF001433) No
Unlocking method (EF001403) None
