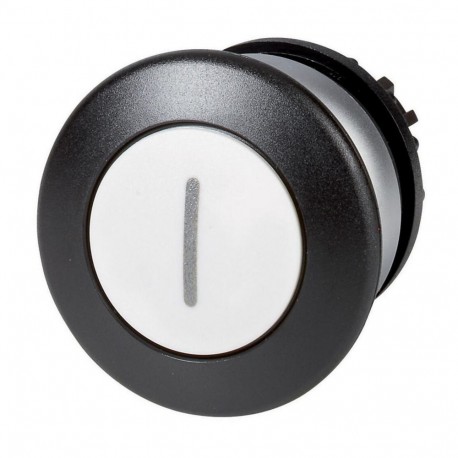

EATON - MOELLER M22-DRP-W-X1 M22-DRP-W-X1 216757 Y7-216757 EATON ELECTRIC Mushroom actuator, white I, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRP-W-X1 216757 Y7-216757 EATON ELECTRIC Mushroom actuator, white I, maintained

M22-DRP-W-X1

216757

Y7-216757

EATON - MOELLER

1 Pcs.

Mushroom actuator, white I, maintained M22-DRP-W-X1 Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, maintained, Mushroom black, White, inscribed, Bezel: titanium Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, maintained, Color Mushroom: black, button plate: White, inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: maintained, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-DRP-W-X1 mushroom actuator provides a maintained white control element featuring standard marking for industrial panels and automated production equipment. These components allow operators to maintain specific control states on machinery consoles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216757
Model Code
M22-DRP-W-X1
EAN
4015082167578
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
VDE 0660
IEC/EN 60947-5
UL
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947
CSA File No.: 012528
UL Category Control No.: NKCR
CE
UL File No.: E29184
CSA
DNV
GL
LR
