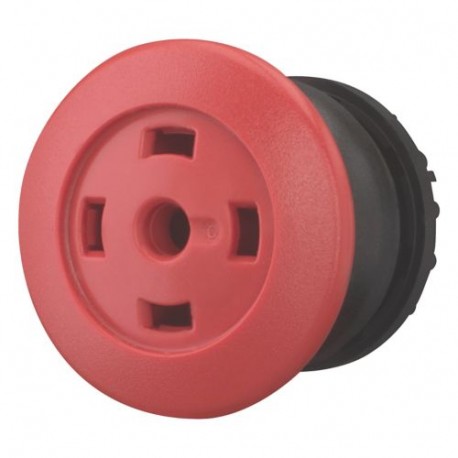

EATON - MOELLER M22S-DP-R-X M22S-DP-R-X 216733 Y7-216733 EATON ELECTRIC Mushroom actuator, red, without button plate, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DP-R-X 216733 Y7-216733 EATON ELECTRIC Mushroom actuator, red, without button plate, momentary

M22S-DP-R-X

216733

Y7-216733

EATON - MOELLER

1 Pcs.

Mushroom actuator, red, without button plate, momentary M22S-DP-R-X Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom red, Without button plate, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: red, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22S-DP-R-X mushroom actuator serves as an ergonomic operator control device for machinery panels, typically applied where palm actuation is required for routine commands. These components mount on standard enclosure cutouts to interface with internal contact blocks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216733
Model Code
M22S-DP-R-X
EAN
4015082167332
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA-C22.2 No. 94-91
UL 508
IEC/EN 60947
UL
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA
CE
CSA File No.: 012528
IEC/EN 60947-5
CSA Class No.: 3211-03
UL Category Control No.: NKCR
VDE 0660
DNV
GL
LR
