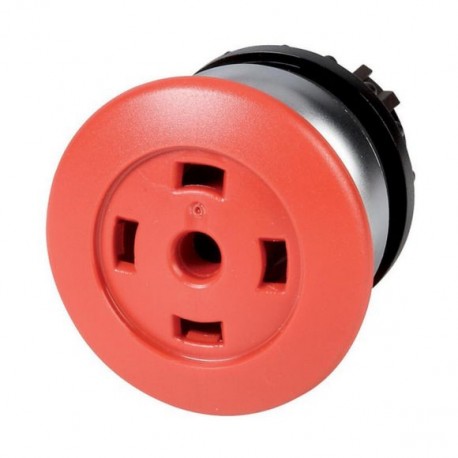

EATON - MOELLER M22-DP-R-X M22-DP-R-X 216731 Y7-216731 EATON ELECTRIC Mushroom actuator, red, without button plate, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DP-R-X 216731 Y7-216731 EATON ELECTRIC Mushroom actuator, red, without button plate, momentary

M22-DP-R-X

216731

Y7-216731

EATON - MOELLER

5 Pcs.

Mushroom actuator, red, without button plate, momentary M22-DP-R-X Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom red, Without button plate, Bezel: titanium Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: red, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-DP-R-X is a red mushroom actuator designed to fit standard panel cutouts for general machine control and operator signalling. This momentary device accepts customized button plates to suit specific industrial interface requirements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216731
Model Code
M22-DP-R-X
EAN
4015082167318
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
IEC/EN 60947
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947-5
VDE 0660
CE
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL 508
UL Category Control No.: NKCR
CSA Class No.: 3211-03
UL
UL File No.: E29184
DNV
GL
LR
