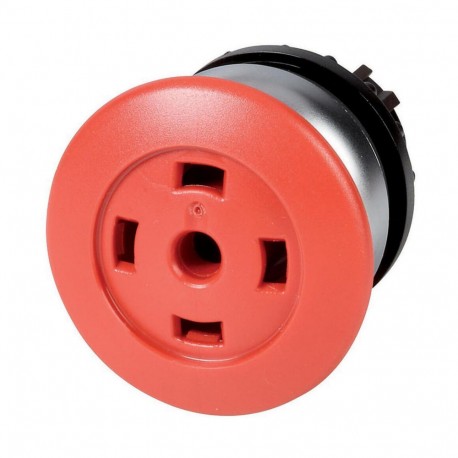

EATON - MOELLER M22-DRP-R-X M22-DRP-R-X 216762 Y7-216762 EATON ELECTRIC Mushroom actuator, red, without button plate, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRP-R-X 216762 Y7-216762 EATON ELECTRIC Mushroom actuator, red, without button plate, maintained

M22-DRP-R-X

216762

Y7-216762

EATON - MOELLER

1 Pcs.

Mushroom actuator, red, without button plate, maintained M22-DRP-R-X Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, maintained, Mushroom red, Without button plate, Bezel: titanium Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, maintained, Color Mushroom: red, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: maintained, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller M22-DRP-R-X mushroom actuator serves as a robust operator component for industrial control panels, enabling maintained manual switching tasks in automated environments. These actuators are commonly installed on operator consoles where sustained control states are required for processing equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216762
Model Code
M22-DRP-R-X
EAN
4015082167622
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947-5
UL 508
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
UL File No.: E29184
CSA
IEC/EN 60947
VDE 0660
CE
CSA-C22.2 No. 14-05
UL
DNV
GL
LR
