EATON - MOELLER M22S-DP-R M22S-DP-R 216715 Y7-216715 EATON ELECTRIC Mushroom actuator, red, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

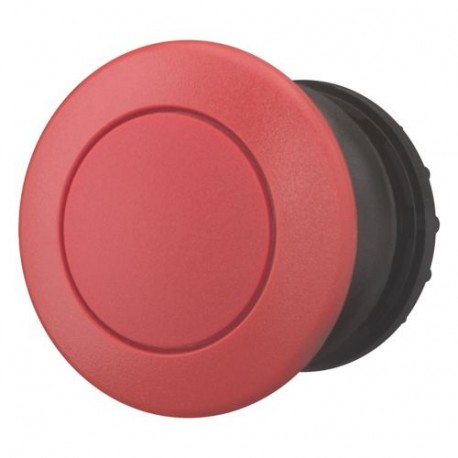

M22S-DP-R 216715 Y7-216715 EATON ELECTRIC Mushroom actuator, red, momentary

M22S-DP-R

216715

Y7-216715

EATON - MOELLER

5 Pcs.

Mushroom actuator, red, momentary M22S-DP-R Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom red, red, Blank, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: red, button plate: red, Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller red mushroom actuator (part number M22S-DP-R 216715) acts as a flat, spring-return operator element for momentary command inputs on industrial control desks and automation panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216715
Model Code
M22S-DP-R
EAN
4015082167158
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA Class No.: 3211-03
CSA File No.: 012528
CSA
CSA-C22.2 No. 14-05
VDE 0660
UL 508
UL Category Control No.: NKCR
UL File No.: E29184
IEC/EN 60947-5
UL
CSA-C22.2 No. 94-91
IEC/EN 60947
CE
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
