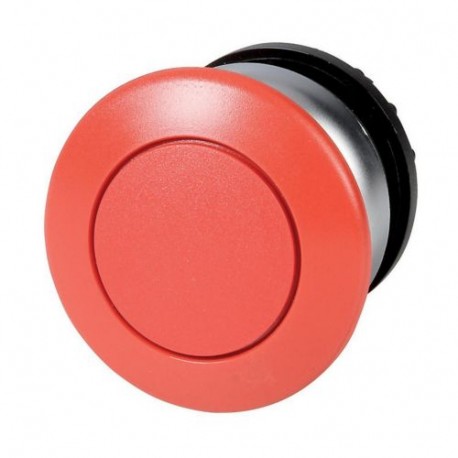

Mushroom actuator, red, momentary M22-DP-R Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom red, red, Blank, Bezel: titanium Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: red, button plate: red, Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mushroom actuator provides a high-visibility, ergonomic control interface for initiating standard machine functions on industrial panels. Momentary versions spring back instantly upon release, making them ideal for quick operator inputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216714
Model Code
M22-DP-R
EAN
4015082167141
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
VDE
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
UL File No.: E29184
CE
UL
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
