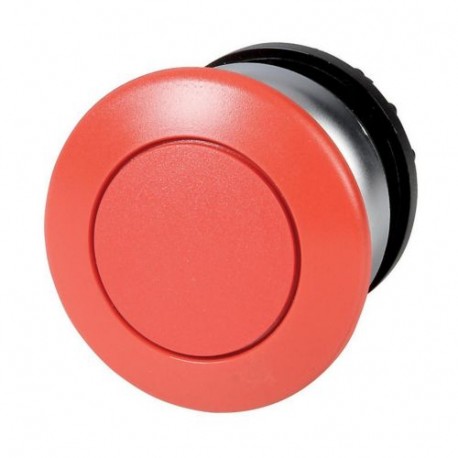

M22-DRP-R 216745 Y7-216745 EATON ELECTRIC Mushroom actuator, red, maintained
M22-DRP-R
216745
Y7-216745
EATON - MOELLER
5 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-DRP-R 216745 Y7-216745 EATON ELECTRIC Mushroom actuator, red, maintained is an Eaton Moeller maintained mushroom actuator deployed in machine control panels to execute latching operator commands. Maintained pushbuttons remain in their actuated position until manually reset, serving essential roles in operational control loops.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 36.5 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
More info
▲IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
VDE 0660
UL
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: 3211-03
CSA File No.: 012528
CE
IEC/EN 60947-5
IEC/EN 60947
LR
DNV
GL
Classical
NEMA 4X, 13
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Damp heat, constant, to IEC 60068-2-78
Yes
Switching function latching
