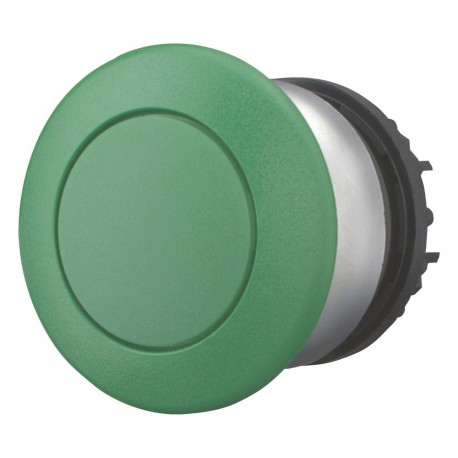

M22-DP-G 216716 Y7-216716 EATON ELECTRIC Mushroom actuator, green, momentary
M22-DP-G
216716
Y7-216716
EATON - MOELLER
5 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Mushroom actuator, green, momentary manufactured by Eaton Moeller provides ergonomic, momentary-action switching for industrial control panels and operator interfaces. Spring-return mushroom operators are frequently specified for machine start commands or routine cycle initiations requiring immediate contact release.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 36.5 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
More info
▲General specifications
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
VDE 0660
IEC/EN 60947-5
UL
UL File No.: E29184
CSA
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X, 13
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Momentary
