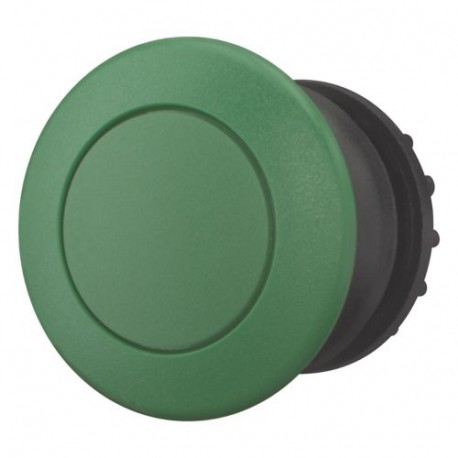

EATON - MOELLER M22S-DRP-G M22S-DRP-G 216748 Y7-216748 EATON ELECTRIC Mushroom actuator, green, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DRP-G 216748 Y7-216748 EATON ELECTRIC Mushroom actuator, green, maintained

M22S-DRP-G

216748

Y7-216748

EATON - MOELLER

1 Pcs.

Mushroom actuator, green, maintained M22S-DRP-G Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, maintained, Mushroom green, green, Blank, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, maintained, Color Mushroom: green, button plate: green, Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: maintained, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a reliable manual control interface, this Eaton Moeller M22S-DRP-G mushroom actuator is designed for integration into industrial control consoles and electrical enclosures. Maintained mushroom operators are routinely specified when machine functions require a sustained input state until manually toggled back.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216748
Model Code
M22S-DRP-G
EAN
4015082167486
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA
UL 508
UL Category Control No.: NKCR
CE
CSA-C22.2 No. 14-05
VDE 0660
IEC/EN 60947-5
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
CSA File No.: 012528
UL
UL File No.: E29184
IEC/EN 60947
DNV
GL
LR
