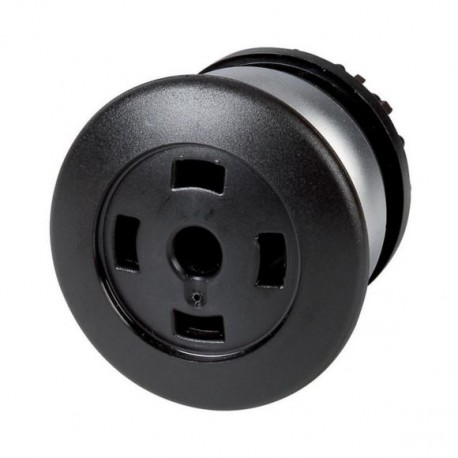

M22-DP-S-X 216728 Y7-216728 EATON ELECTRIC Mushroom actuator, black, without button plate, momentary
M22-DP-S-X
216728
Y7-216728
EATON - MOELLER
5 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-DP-S-X mushroom actuator functions as a mechanical operator base designed for momentary control tasks in industrial control stations. System integrators pair these versatile actuators with customized button plates to build specialized operator interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 36.5 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
More info
▲General specifications
UL 508
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
CE
UL
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CSA
IEC/EN 60947
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X, 13
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
