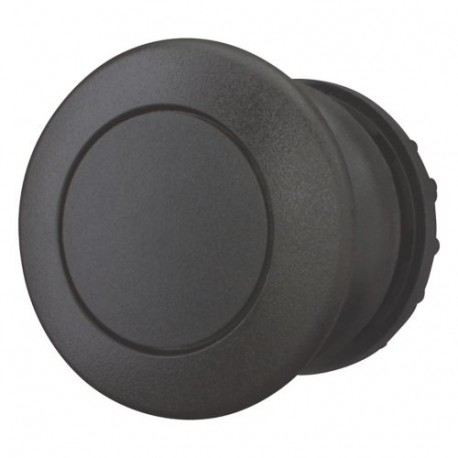

EATON - MOELLER M22S-DP-S M22S-DP-S 216713 Y7-216713 EATON ELECTRIC Mushroom actuator, black, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DP-S 216713 Y7-216713 EATON ELECTRIC Mushroom actuator, black, momentary

M22S-DP-S

216713

Y7-216713

EATON - MOELLER

5 Pcs.

Mushroom actuator, black, momentary M22S-DP-S Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom black, black, Blank, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: black, button plate: black, Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22S-DP-S mushroom actuator offers a dependable operator control point for industrial machinery and distribution boards. Its spring-return mechanism ensures momentary switching action, allowing operators to send temporary signals before the cap automatically returns to its resting position. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216713
Model Code
M22S-DP-S
EAN
4015082167134
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
CSA
IEC/EN 60947
IEC/EN 60947-5
CE
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL File No.: E29184
UL
UL 508
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
