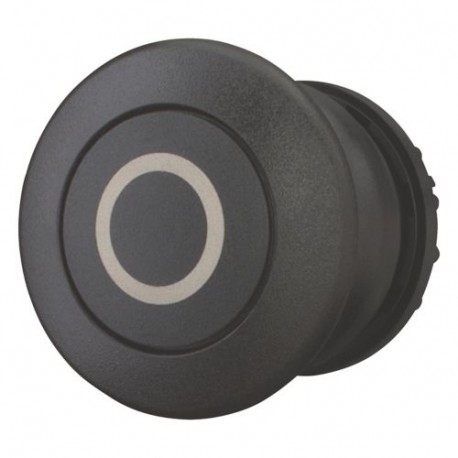

EATON - MOELLER M22S-DP-S-X0 M22S-DP-S-X0 216725 Y7-216725 EATON ELECTRIC Mushroom actuator, black 0, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DP-S-X0 216725 Y7-216725 EATON ELECTRIC Mushroom actuator, black 0, momentary

M22S-DP-S-X0

216725

Y7-216725

EATON - MOELLER

1 Pcs.

Mushroom actuator, black 0, momentary M22S-DP-S-X0 Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, momentary, Mushroom black, black, inscribed, Bezel: black Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: black, button plate: black, inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller mushroom actuator (part number M22S-DP-S-X0) serves as a momentary control interface component for standard panel mounting, allowing operators to initiate brief commands on machinery. Its distinct black cap provides clear visual identification for non-safety control paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 36.5 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216725
Model Code
M22S-DP-S-X0
EAN
4015082167257
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
IEC/EN 60947
UL 508
UL File No.: E29184
CSA File No.: 012528
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL
VDE 0660
CE
UL Category Control No.: NKCR
IEC/EN 60947-5
CSA-C22.2 No. 14-05
CSA
DNV
GL
LR
