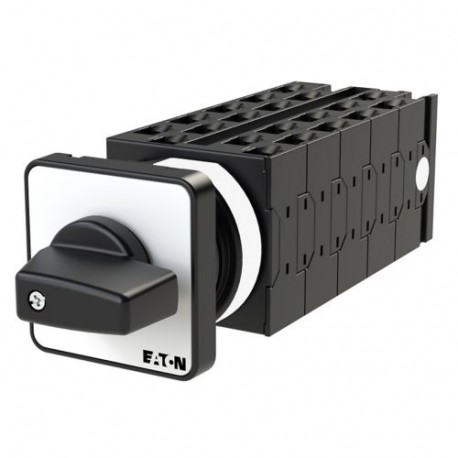

EATON - MOELLER T0-10-15104/E T0-10-15104/E 009875 Y7-9875 EATON ELECTRIC Multi-speed switches, Contacts: 19, 20 A, 3 speeds, front plate:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-10-15104/E 009875 Y7-9875 EATON ELECTRIC Multi-speed switches, Contacts: 19, 20 A, 3 speeds, front plate:..

T0-10-15104/E

009875

Y7-9875

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 19, 20 A, 3 speeds, front plate: 1-2-3, 60 °, maintained, flush mounting Switch Multi-speed; 19-pole; 20a; 3 speeds; rating Plate: 1-2-3; 60 °; Interlock; recessed Mounting Eaton Moeller® series T0 Multi-speed switches, T0, 20 A, flush mounting, 10 contact unit(s), Contacts: 19, 60 °, maintained, With 0 (Off) position, 1-2-3, Design number 15104 Multi-speed switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 19, Degree of Protection: Front IP65, Design: flush mounting, switching function: 3 speeds, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-2-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 10 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A multi-speed switch such as the Eaton Moeller T0-10-15104/E enables operators to manually select distinct operating speeds for multi-pole electric motors. These specialized control switches are commonly employed in ventilation systems, pumps, and industrial machinery requiring variable speed outputs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Pole switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Multi-speed switch
Catalog Number
009875
Model Code
T0-10-15104/E
EAN
4015080098751
Product Length/Depth
162 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.274 kg
Certifications
CSA
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
VDE 0660
UL
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
