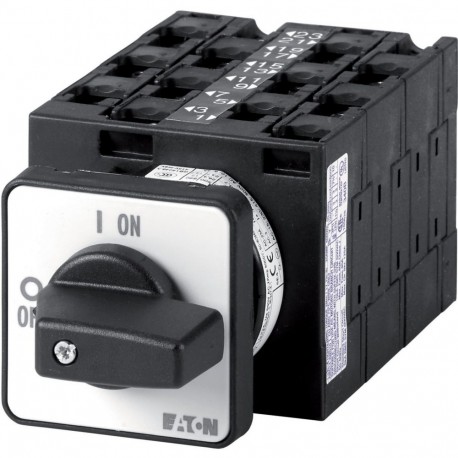

EATON - MOELLER T3-6-104/E T3-6-104/E 004214 Y7-4214 EATON ELECTRIC Multi-speed switches, Contacts: 12, 32 A, One tapped winding, 2 spe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-104/E 004214 Y7-4214 EATON ELECTRIC Multi-speed switches, Contacts: 12, 32 A, One tapped winding, 2 spe..

T3-6-104/E

004214

Y7-4214

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 12, 32 A, One tapped winding, 2 speeds, front plate: 0-Y-D-2, 60 °, maintained, flush mounting, SOND 29 Switch Multi-speed; 12-pole; 32; 1 winding threading; 2 speeds; rating Plate: 0-y-D-2; 60 °; Interlock; recessed Mounting; SOND 29 Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, flush mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, With 0 (Off) position, 0-Y-D-2, SOND 29, Design number 104 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 29, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, switching function: One tapped winding, 2 speeds, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operate multi-speed equipment efficiently with the Eaton Moeller T3-6-104/E multi-speed switch, designed for manual selection of distinct motor operating velocities. Industrial systems rely on these switches to control machinery requiring variable operational speeds through direct manual intervention. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model: Dahlander switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
004214
Model Code
T3-6-104/E
EAN
4015080042143
Product Length/Depth
137 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.332 kg
Certifications
UL File No.: E36332
VDE 0660
CE
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
