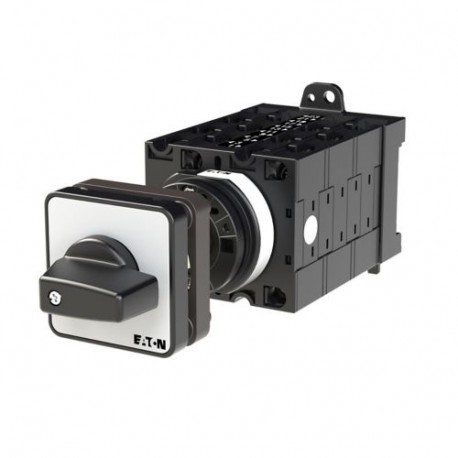

EATON - MOELLER T3-6-8449/Z T3-6-8449/Z 004451 Y7-4451 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate win.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-8449/Z 004451 Y7-4451 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate win..

T3-6-8449/Z

004451

Y7-4451

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate windings, front plate: 0-Y-1-2, 60 °, maintained, rear mounting Multi-speed switch 11 poles 32 A 2 speeds 2 windings Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, rear mounting, 6 contact unit(s), Contacts: 11, 60 °, maintained, With 0 (Off) position, 0-Y-1-2, Design number 8449 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 11, Degree of Protection: Front IP65, Design: rear mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-speed motor control applications, the Eaton Moeller T3-6-8449/Z multi-speed switch allows operators to manually select between distinct operational velocities in industrial drive systems. These specialized cam switches are widely implemented in ventilation units, conveyor systems, and heavy machinery requiring adjustable multi-stage operating profiles.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Pole switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
004451
Model Code
T3-6-8449/Z
EAN
4015080044512
Product Length/Depth
179 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.366 kg
Certifications
CE
UL Category Control No.: NLRV
CSA
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 94
IEC/EN 60204
UL
IEC/EN 60947-3
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
