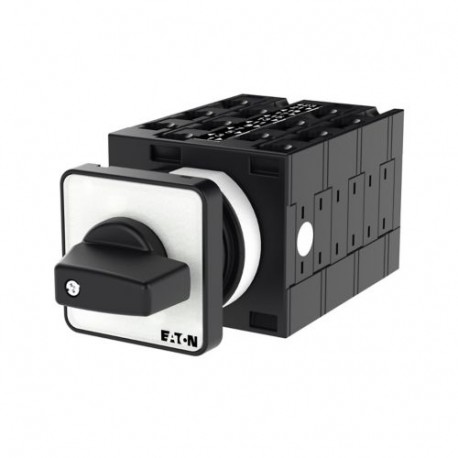

EATON - MOELLER T3-6-8449/E T3-6-8449/E 004448 Y7-4448 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate win.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-8449/E 004448 Y7-4448 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate win..

T3-6-8449/E

004448

Y7-4448

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 11, 32 A, 2 speeds, 2 separate windings, front plate: 0-Y-1-2, 60 °, maintained, flush mounting Multi-speed switch 11 poles 32 A 2 speeds 2 windings Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, flush mounting, 6 contact unit(s), Contacts: 11, 60 °, maintained, With 0 (Off) position, 0-Y-1-2, Design number 8449 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 11, Degree of Protection: Front IP65, Design: flush mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-6-8449/E is a pole switch utilized for controlling multi-speed electric motors with separate windings in industrial drive assemblies. Multi-speed control switches allow operators to manually select different operating velocities based on production requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Pole switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
004448
Model Code
T3-6-8449/E
EAN
4015080044482
Product Length/Depth
137 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.332 kg
Certifications
CSA
CSA-C22.2 No. 94
CE
CSA File No.: 012528
CSA Class No.: 3211-05
UL
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
IEC/EN 60947-3
UL Category Control No.: NLRV
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
