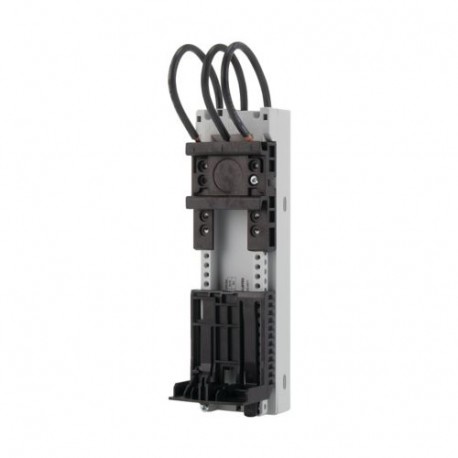

MSFAD-25 191097 Y7-191097 EATON ELECTRIC Adapter for MSC-D, 25 A
MSFAD-25
191097
Y7-191097
EATON - MOELLER
4 Pcs.
Adapter for MSC-D, 25 A
MSFAD-25
Eaton Moeller® series MSF Adapter, 25 A, Pole 3, For use with MSC-D, 25 A
Adapter, Product range: Accessories, Busbar adapters, Approved to UL 508, For use with: MSC-D, 25 A, Rated operational voltage: Ue= 690 V, Rated operational current: Ie= 25 A, Terminal capacity: AWG 12, (4 mm²), Adapter width: 45 mm, Adapter length: 160 mm, DIN rail: 1
Automation > Busbar adapter
Circuit Breakers PKZ
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series MSF Accessory Adapter
Catalog Number
191097
Model Code
MSFAD-25
EAN
4015081915958
Product Length/Depth
160 mm
Product Height
65 mm
Product Width
45 mm
Product Weight
0.122 kg
Certifications
UL 508
Features & Functions
Adapter width
45 mm
Electric connection type
3 conductors AWG 12
Number of DIN rails
1
Number of poles
Three-pole
Special features
Terminal capacity: 4 mm² (AWG 12)
General
Type
Busbar adapter
Electrical rating
Nominal current
25 A
Rated operation current (Ie)
25 A
Voltage rating at AC
690 V
| Feature Name | Feature Value |
|---|---|
| Mounting rail armament (EF003700) | 1 mounting rail |
| Type of electric connection (EF003961) | 3 conductors AWG 12 |
| Rated current In (EF008250) | 25 A |
| Min. busbar thickness (EF006536) | 2 mm |
| Max. busbar thickness (EF003702) | 2 mm |
| Width of the adapter (EF003703) | 45 mm |
| Rail width (EF003704) | 24 mm |
| Busbar distance (EF002638) | 60 mm |
