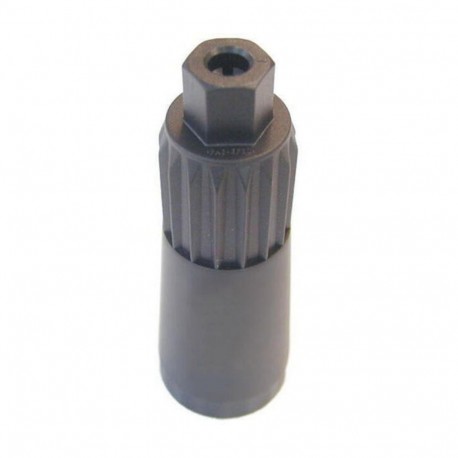

EATON - MOELLER M22-MS M22-MS 216402 Y7-216402 EATON ELECTRIC Mounting ring tool View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-MS 216402 Y7-216402 EATON ELECTRIC Mounting ring tool

M22-MS

216402

Y7-216402

EATON - MOELLER

1 Pcs.

Mounting ring tool M22-MS Eaton Moeller® series M22 Mounting ring tool A mounting ring tool is highly recommended with large numbers of RMQ-Titan pilot devices.

Tools > Special tool for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-MS is a mounting ring tool designed to simplify the installation and secure tightening of control and signaling devices in industrial panels. Technicians use this type of hand tool during assembly and maintenance to properly torque threaded rings without damaging surrounding components. Current pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting wrench

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Mounting tool
Catalog Number
216402
Model Code
M22-MS
EAN
4015082164027
Product Length/Depth
88 mm
Product Height
31 mm
Product Width
31 mm
Product Weight
0.02 kg
Certifications
UL/CSA certification not required

General

Model
Mounting wrench
Used with
Threaded ring

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
