View larger
Images are for illustrative purposes only. Please refer to data sheet for details

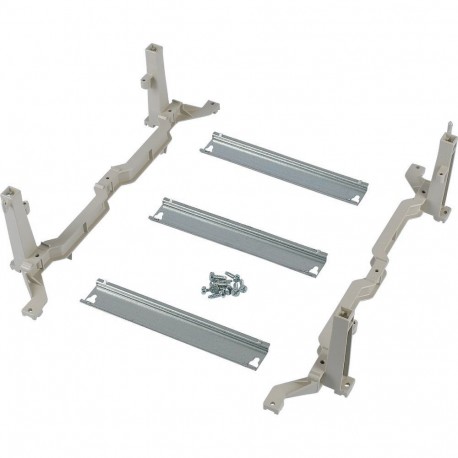

TG43 046377 Y7-46377 EATON ELECTRIC Mounting rail support, 3x9 space units
TG43
046377
Y7-46377
EATON - MOELLER
1 Pcs.
Mounting rail support, 3x9 space units
Eaton xEnergy Safety Ci LV systems LV switchgear. Mounting rail support, 3x9 space units
Mounting rail support 3-row for CI MCB enclosure, 3x9 SU, 3x 162mm DIN busbar length, including support bracket and fixing material
Automation > Mounting rail
Insulating Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Safety Ci MCB enclosure accessory
Catalog Number
046377
Model Code
TG43
EAN
4015080463771
Product Length/Depth
407 mm
Product Height
116 mm
Product Width
159 mm
Product Weight
0.488 kg
Compliances
RoHS conform
Product specifications
Special features
Type
- MCB enclosure modular system
- Prepared enclosures
- Three rows
- xEnergy Safety Ci
Accessory/spare part type
Mounting rail supports
Surface finishing
Galvanized
Continuously galvanized
Continuously galvanized
Used with
CI43…
Three rows
Prepared enclosures
xEnergy Safety Ci
MCB enclosure modular system
Three rows
Prepared enclosures
xEnergy Safety Ci
MCB enclosure modular system
Unit type
Modular system
Drill hole distance (centrically)
0 mm
Material thickness
3 mm
Material
Steel
Model
DIN rail (top hat rail) 35/7.5 mm
Functions
Prepared enclosure
Punch shape
None
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | DIN rail (top hat rail) 35/7.5 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Punch shape (EF001457) | None |
| Drill hole distance centrically (EF002677) | 0 mm |
| Material thickness (EF000386) | 3 mm |
| Length (EF001438) | 407 mm |
| Height (EF000040) | 116 mm |
