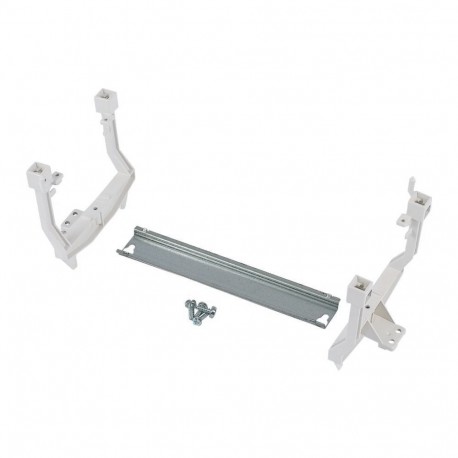

TG23 044004 Y7-44004 EATON ELECTRIC Mounting rail support, 1x9 space units
TG23
044004
Y7-44004
EATON - MOELLER
1 Pcs.
Mounting rail support, 1x9 space units
Eaton xEnergy Safety Ci LV systems LV switchgear. Mounting rail support, 1x9 space units
Mounting rail support 1-row for CI MCB enclosure, 1x9 SU, 162mm DIN busbar length, including support bracket and fixing material
Automation > Mounting rail
Insulating Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Safety Ci MCB enclosure accessory
Catalog Number
044004
Model Code
TG23
EAN
4015080440048
Product Length/Depth
150 mm
Product Height
250 mm
Product Width
180 mm
Product Weight
0.184 kg
Compliances
RoHS conform
Product specifications
Used with
CI23
Special features
Type
- MCB enclosure modular system
- One row
- Prepared enclosures
- xEnergy Safety Ci
Accessory/spare part type
Mounting rail supports
Surface finishing
Galvanized
Continuously galvanized
Continuously galvanized
Unit type
Modular system
Drill hole distance (centrically)
0 mm
Material thickness
3 mm
Material
Steel
Model
DIN rail (top hat rail) 35/7.5 mm
Functions
Prepared enclosure
Punch shape
None
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | DIN rail (top hat rail) 35/7.5 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Punch shape (EF001457) | None |
| Drill hole distance centrically (EF002677) | 0 mm |
| Material thickness (EF000386) | 3 mm |
| Length (EF001438) | 150 mm |
| Height (EF000040) | 250 mm |
