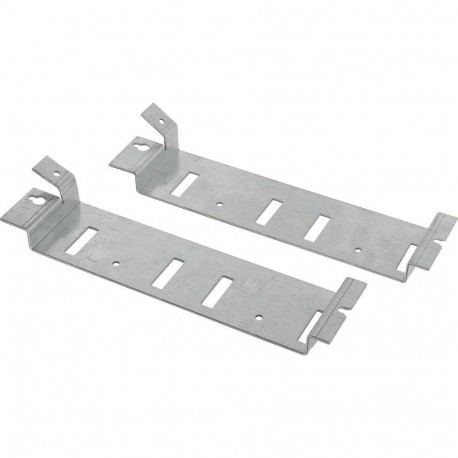

EATON - MOELLER BPZ-BR/BBS630/V BPZ-BR/BBS630/V 104331 Y7-104331 EATON ELECTRIC 104331 BPZ-BR/BBS630/V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-BR/BBS630/V 104331 Y7-104331 EATON ELECTRIC 104331 BPZ-BR/BBS630/V

BPZ-BR/BBS630/V

104331

Y7-104331

EATON - MOELLER

1 Pcs.

104331 BPZ-BR/BBS630/V BPZ-BR/BBS630/V Eaton xEnergy Basic LV systems Low voltage switchgear. Mounting plate Service distribution system—Profi Plus (floor standing distribution board, wall-mounting/flush-mounted distribution board)

Automation > Mounting plate for distribution board
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A BPZ-BR/BBS630/V 104331 Y7-104331 EATON ELECTRIC 104331 BPZ-BR/BBS630/V is an internal structural support component used to mount, anchor, and guide busbar systems or modular assemblies within electrical distribution boards. These brackets ensure proper mechanical spacing and secure physical stability for power distribution infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 90 mm
  • Width (EF000008): 340 mm
  • Material (EF002169): Steel
  • Surface protection (EF000139): Galvanised
  • Perforated (EF000115): true

More info

▲

General specifications

Product Name
Eaton xEnergy Basic mounting plate
Catalog Number
104331
Model Code
BPZ-BR/BBS630/V
EAN
4015081041589
Product Length/Depth
90 mm
Product Height
90 mm
Product Width
340 mm
Product Weight
1.38 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Application
4-poles busbar support
Amperage rating
630 A

Technical data - mechanical

Surface finishing
Galvanized
Surface protection
Galvanized
Mounting method
Surface mounting
Floor standing distribution board
Mounting position
Horizontal
Material
Steel
Sheet steel
Housing material
Sheet steel

Additional information

Features
Perforated
Functions
Additional equipment
