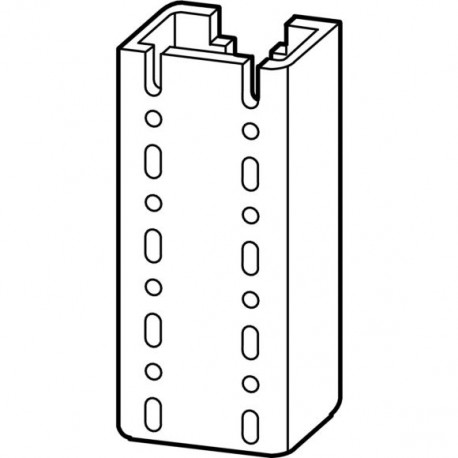

EATON - MOELLER WS12-ID WS12-ID 022659 Y7-22659 EATON ELECTRIC Mounting frame profile, vertical, L 1500mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WS12-ID 022659 Y7-22659 EATON ELECTRIC Mounting frame profile, vertical, L 1500mm

WS12-ID

022659

Y7-22659

EATON - MOELLER

1 Pcs.

Mounting frame profile, vertical, L=1500mm Profile for mounting frame CI, for wall-mounting distribution system, floor standing or surface-mounted distribution board, supported on the floor, galvanized and passivated steel, C section with punched holes as a clearance of 25 mm, connecting pieces and fastening screws are obtainable separately

Automation > Component for arrangement / baying system (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

WS12-ID 022659 Y7-22659 EATON ELECTRIC Mounting frame profile, vertical, L 1500mm is a structural frame profile utilized to build internal mounting grids within electrical distribution enclosures. Vertical profiles provide rigid support points for mounting modular control gear, DIN rails, and cable management accessories. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width (EF000008): 50 mm
  • Height (EF000040): 25 mm
  • Depth (EF000049): 1500 mm
  • Material (EF002169): Steel
  • RAL-number (EF000116): 0

More info

▲
Mounting frame profile, vertical, L=1500mm
Profile for mounting frame CI, for wall-mounting distribution system, floor standing or surface-mounted distribution board, supported on the floor, galvanized and passivated steel, C section with punched holes as a clearance of 25 mm, connecting pieces and fastening screws are obtainable separately

General specifications
Product name
Eaton xEnergy Safety Ci mounting profile vertical / outside
Part no.
WS12-ID
EAN
4015080226598
Product Length/Depth
1500 millimetre
Product height
25 millimetre
Product width
50 millimetre
Product weight
2.707 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Safety Ci
Product Type
Mounting profile
Product Sub Type
Vertical / outside
Delivery program
Type
Ci insulated enclosure
Distribution board assembly
Section for mounting frame
Model
Other
Color
Other
Technical Data - Mechanical
Unit type
Single unit
Surface finishing
Galvanized C section
Material
Steel
Number of 125 mm grid spacings
12
Profile shape
Vertical section (outside)
Additional information
Functions
Distribution board assembly
RAL-number
0
Special features
Order fixing screws seperately
Used with
For wall-mounting distribution system
For wall-mounting distribution system supported on the floor
Section for mounting frame
Ci insulated enclosure
Distribution board assembly

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Components for arrangement/baying system (enclosure/cabinet) (EC002622)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for arrangement/baying system (electrical cabinet) (ecl@ss13-27-18-28-13 [ACN631017])
Model
Other
Width
50 mm
Height
25 mm
Depth
1500 mm
Material
Steel
Colour
Other
RAL-number
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
