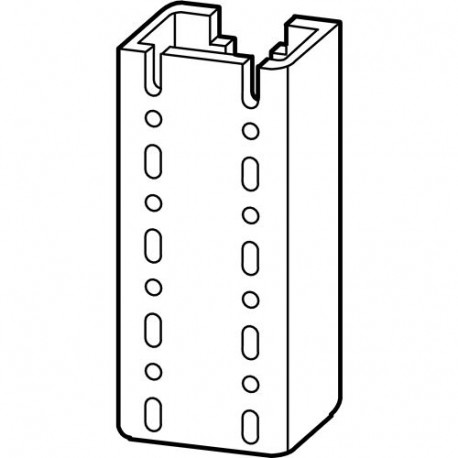

EATON - MOELLER WS10-ID WS10-ID 017913 Y7-17913 EATON ELECTRIC Mounting frame profile, vertical, L 1250mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WS10-ID 017913 Y7-17913 EATON ELECTRIC Mounting frame profile, vertical, L 1250mm

WS10-ID

017913

Y7-17913

EATON - MOELLER

1 Pcs.

Mounting frame profile, vertical, L=1250mm Profile for mounting frame CI, for wall-mounting distribution system, floor standing or surface-mounted distribution board, supported on the floor, galvanized and passivated steel, C section with punched holes as a clearance of 25 mm, connecting pieces and fastening screws are obtainable separately

Automation > Component for arrangement / baying system (switchgear cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Mounting frame profile, vertical, L=1250mm
Profile for mounting frame CI, for wall-mounting distribution system, floor standing or surface-mounted distribution board, supported on the floor, galvanized and passivated steel, C section with punched holes as a clearance of 25 mm, connecting pieces and fastening screws are obtainable separately

General specifications
Product name
Eaton xEnergy Safety Ci mounting profile vertical / outside
Part no.
WS10-ID
EAN
4015080179139
Product Length/Depth
1250 millimetre
Product height
25 millimetre
Product width
50 millimetre
Product weight
2.3 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Safety Ci
Product Type
Mounting profile
Product Sub Type
Vertical / outside
Delivery program
Type
Ci insulated enclosure
Distribution board assembly
Section for mounting frame
Model
Other
Color
Other
Technical Data - Mechanical
Unit type
Single unit
Surface finishing
Galvanized C section
Material
Steel
Number of 125 mm grid spacings
10
Profile shape
Vertical section (outside)
Additional information
Functions
Distribution board assembly
RAL-number
0
Special features
Order fixing screws seperately
Used with
For wall-mounting distribution system
For wall-mounting distribution system supported on the floor

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Components for arrangement/baying system (enclosure/cabinet) (EC002622)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for arrangement/baying system (electrical cabinet) (ecl@ss13-27-18-28-13 [ACN631017])
Model
Other
Width
50 mm
Height
25 mm
Depth
1250 mm
Material
Steel
Colour
Other
RAL-number
0

ETIM for 017913 Cabinets and enclosures (EC002622)
Feature Name Feature Value
Model (EF000010) Other
Width (EF000008) 50 mm
Height (EF000040) 25 mm
Depth (EF000049) 1250 mm
Material (EF002169) Steel
Colour (EF000007) Other
RAL-number (EF000116) 0
