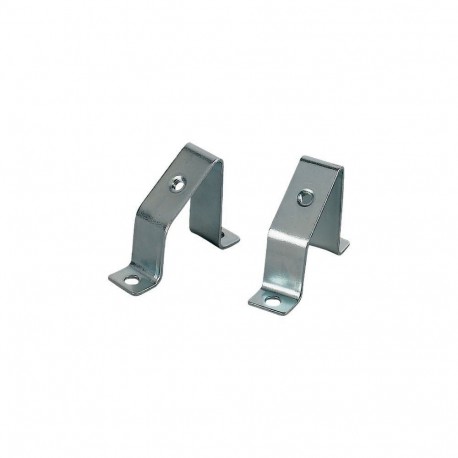

EATON - MOELLER TS1-BRA-CS TS1-BRA-CS 138772 Y7-138772 EATON ELECTRIC Mounting bracket, inclined, for mounting rails View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TS1-BRA-CS 138772 Y7-138772 EATON ELECTRIC Mounting bracket, inclined, for mounting rails

TS1-BRA-CS

138772

Y7-138772

EATON - MOELLER

1 Pcs.

Mounting bracket, inclined, for mounting rails TS1-BRA-CS Eaton xEffect CS LV systems Switch- & Controlgear Enclosure. Mounting bracket, inclined, for mounting rails Inclined mounting bracket, for mounting support rails in inclined position, suitable for mounting rails TS35x7.5 and TS35x15

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A TS1-BRA-CS 138772 Y7-138772 EATON ELECTRIC Mounting bracket, inclined, for mounting rails acts as a specialized hardware fixture designed to angle DIN rails and mounted control gear inside electrical enclosures for improved visibility and wire access.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 60 mm
  • Height (EF000040): 47 mm
  • Depth (EF000049): 1.5 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEffect CS fixing bracket
Catalog Number
138772
Model Code
TS1-BRA-CS
EAN
4015081355525
Product Length/Depth
1.5 mm
Product Height
47 mm
Product Width
60 mm
Product Weight
0.1 kg
Compliances
RoHS conform

Delivery program

Type
Model
Mounting kit
Accessory/spare part type
Mounting bracket, inclined
Color
Other

Technical data - mechanical

Surface finishing
Galvanized
Material
Steel plate
Metal
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

Functions
For mounting support rails in inclined position
RAL-number
0
Used with
Accessory interior fitting
Accessory CS
