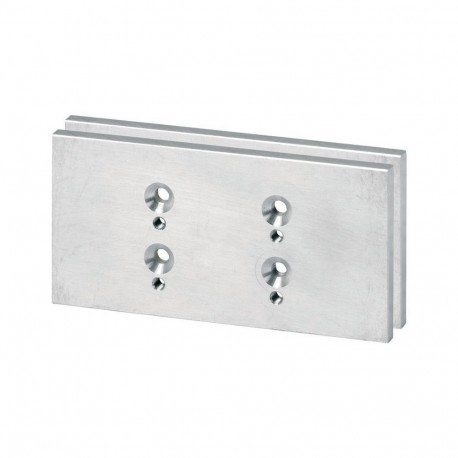

NZM2-XAP7 119381 Y7-119381 EATON ELECTRIC Mounting adapter plate, NZM2 /NZM7
NZM2-XAP7
119381
Y7-119381
EATON - MOELLER
1 Pcs.
Mounting adapter plate, NZM2 /NZM7
NZM2-XAP7
Eaton Moeller series NZM - Molded Case Circuit Breaker. Mounting adapter plate, NZM2 /NZM7
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: positioning the replacement device selectively equal with the connection side or actuation axle. The use of door coupling rotary handle NZM7 continues to be possible if the distance between mounting plate and inner side of door is at least 213 mm. otherwise use the new handle NZM2-XTVD…-0 with new axle. Exchange NZM7 with NZM2 or P7 with PN2/N2. Can be used for: NZM2, N2, PN2, NS2, NZM2-NA, NZM2-4-NA
Automation > Accessories/spare parts for low-voltage switch technology
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series NZM multi-function device adapter
Catalog Number
119381
Model Code
NZM2-XAP7
EAN
4015081175079
Product Length/Depth
50 mm
Product Height
12 mm
Product Width
100 mm
Product Weight
0.16 kg
Compliances
IEC
RoHS conform
RoHS conform
Product specifications
Type
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM2
Used with
N2NS2NZM2NZM2-4-NANZM2-NAPN2Three-pole
Accessory
Mounting adapter plate
Accessory
Mounting adapter plate
Accessory/spare part type
Terminal type
Accessory
Other
Accessory
Other
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
