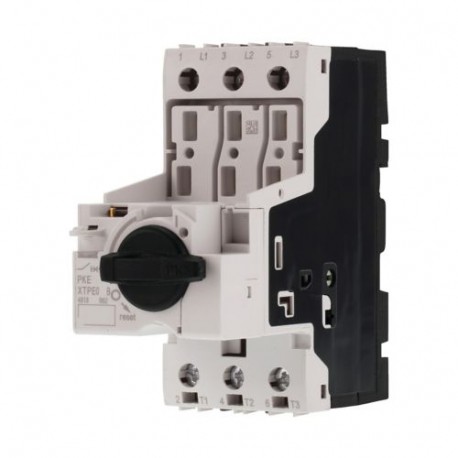

PKE12 121721 Y7-121721 EATON ELECTRIC Motor-protective circuit-breaker, 3p, 12A, electronic, basic device
PKE12
121721
Y7-121721
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Electronic Circuit Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller PKE12 is a motor-protective circuit-breaker designed to provide robust electronic management and protection for three-phase electric motors. These foundational units serve as reliable disconnect and fault-clearing devices within motor control centers and industrial machine enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 0 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): No
- Switch off technique (EF007007): Electronic
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 12 A
- Rated operation power at AC-3, 230 V (EF007025): 0 kW
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Type of electrical connection of main circuit (EF006819): Screw connection
- Type of control element (EF006976): Rotating button
- Device construction (EF008240): Built-in device fixed built-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
More info
▲General specifications
IEC 60947-4-1
EN 60947-4-1
CSA Std. C22.2 No. 14-10
VDE
CE
CSA Class No.: 3211-05
VDE 0660
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
IEC/EN 60947-4-1
UL
UL Category Control No.: NLRV
CSA File No.: 165628
IEC/EN 60947
Features & Functions
Motor protection for heavy starting duty
General
Terminals: IP00
-25 - 55 °C, Operating range
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (1 - 6) mm², ferrule to DIN 46228
2 x (1 - 6) mm²
1.7 Nm, Screw terminals, Main cable
Electrical rating
Short-circuit rating
± 20% tolerance, Trip blocks
