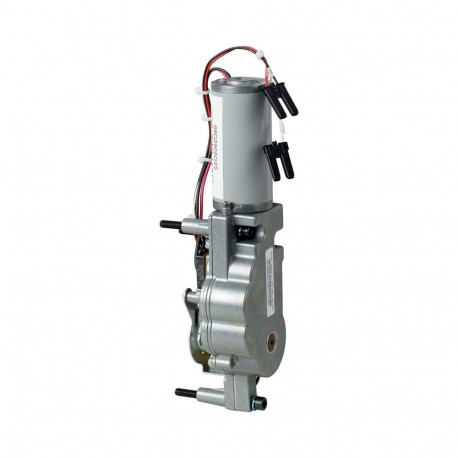

EATON - MOELLER IZMX-M40-60DC IZMX-M40-60DC 124295 0004357402 EATON ELECTRIC Motor operator 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-M40-60DC 124295 0004357402 EATON ELECTRIC Motor operator 60 VDC

IZMX-M40-60DC

124295

0004357402

EATON - MOELLER

1 Pcs.

Motor operator 60 VDC IZMX-M40-60DC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
EL-Nummer (Norway)
0004357402
Motor operator 60 VDC
The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch "spring-operated stored-energy mechanism charged."

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Motor operator
DC
Maximum operating frequency [Actuations/minute]
3
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
60 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
3 A
max. pick-up current (35ms) [In]
13.5 A
max. continuous power [AC/DC]
225 VA/W
max. pull-in power (35ms) [AC/DC]
3 VA/W
For use with
IZMX40…
INX40…
Instructions
An additional control circuit terminal block is required for retrofitting.
For fixed mounting circuit-breakers￫#156593 and withdrawable unit circuit-breakers ￫#156590
Information about equipment supplied
A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.

Technical data

Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
3 s DC
Rated operational current [In]
3 A DC A
Starting current
12 A DC A
Power consumption
175 W DC

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010013])
Type of switch drive
Motor drive
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
60 - 60 V
Voltage type for actuating
DC

ETIM for 124295 Low-voltage industrial controls and switchgear (EC001030)
Feature Name Feature Value
Type of switch drive (EF008233) Motor drive
Rated control supply voltage AC 50 Hz (EF003978) 0 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 60 V
Voltage type for actuating (EF008242) DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
