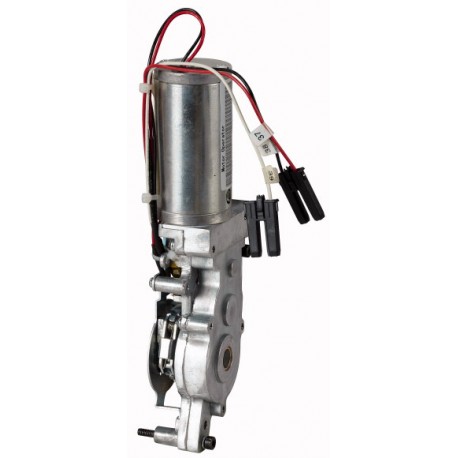

Motor operator 60 VDC IZMX-M16-60DC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The IZMX-M16-60DC 123994 EATON ELECTRIC Motor operator 60 VDC provides motorized actuation for heavy-duty industrial circuit breakers, enabling remote switching and spring charging in automated power distribution networks. These operator units are routinely specified in industrial electrical installations to support centralized supervisory control architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 60 V
  • Voltage type for actuating (EF008242): DC

More info

▲
Motor operator 60 VDC
The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch "spring-operated stored-energy mechanism charged."

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Motor operator
DC
Maximum operating frequency [Actuations/minute]
3
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
60 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
3 A
max. pick-up current (35ms) [In]
15 A
max. continuous power [AC/DC]
150 VA/W
max. pull-in power (35ms) [AC/DC]
3 VA/W
For use with
IZMX16…
INX16…
Instructions
An additional control circuit terminal block is required for retrofitting.
For fixed mounting circuit-breakers→#156593 and withdrawable unit circuit-breakers →#156590
Information about equipment supplied
A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.

Technical data

Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
3 s DC
Rated operational current [In]
3 A DC A
Starting current
15 A DC A
Power consumption
150 W DC

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010013])
Type of switch drive
Motor drive
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
60 - 60 V
Voltage type for actuating
DC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
