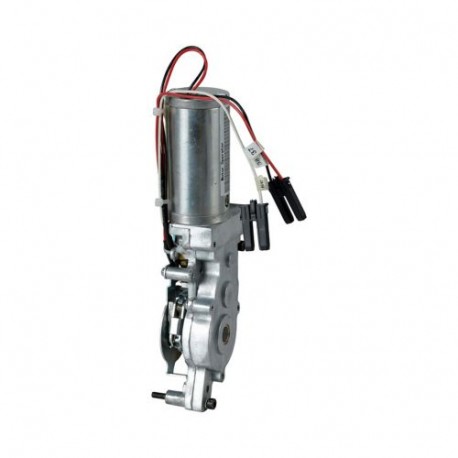

EATON - MOELLER +IZMX-M16-60DC +IZMX-M16-60DC 123978 EATON ELECTRIC Motor operator 60 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-M16-60DC 123978 EATON ELECTRIC Motor operator 60 VDC

+IZMX-M16-60DC

123978

EATON - MOELLER

1 Pcs.

Motor operator 60 VDC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller +IZMX-M16-60DC 123978 motor operator is an electrical switching accessory that provides automated spring charging and remote actuation for heavy-duty circuit breakers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 60 V
  • Voltage type for actuating (EF008242): DC

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX motor operator
Catalog Number
123978
Model Code
+IZMX-M16-60DC
EAN
4015081215836
Product Length/Depth
200 mm
Product Height
100 mm
Product Width
150 mm
Product Weight
0.907 kg
Compliances
CE Marked
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
DC
Control voltage operating range
60 V DC
0.85 - 1.1 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
60 V
Rated control supply voltage (Us) at DC - max
60 V
Current rating - max
3 A (maximum holding current)
Rated operational current
3 A (maximum holding current)
3 A DC
Starting current rating
15 A DC
Power consumption
150 W DC
150 VA/W AC/DC
Pick-up power consumption at 35 ms - max
3 VA/W
Necessary time for charging spring-operated stored energy mechanism at 1 x Us
3 s DC

Technical data - mechanical

Number of actuation per minute - max
3
Switch drive type
Motor drive

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Used with
INX16…
IZMX16…

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
