View larger
Images are for illustrative purposes only. Please refer to data sheet for details

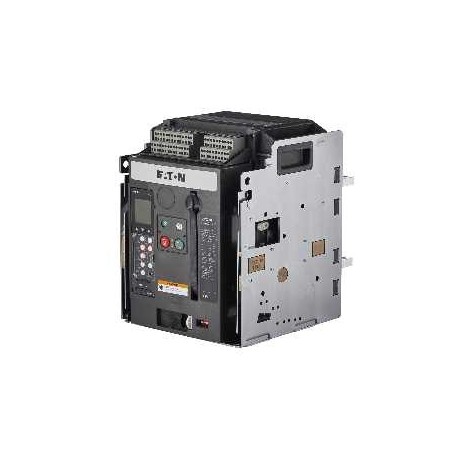

IZM-M24DC 122927 Y7-122927 EATON ELECTRIC Motor operator, 24VDC
IZM-M24DC
122927
Y7-122927
EATON - MOELLER
1 Pcs.
Motor operator, 24VDC
IZM-M24DC
Motor operator, Withdrawable units, For use with: IZM20, 32, 40, 63…, IN20, 32, 40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
Automation > Motor operator for power circuit-breaker
Circuit Breakers IZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Motor operator, 24VDC
Eaton Catalog No.
2A10701G01
Motor operator, Withdrawable units, For use with: IZM20, 32, 40, 63…, IN20, 32, 40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
Delivery program
Accessories
Withdrawable units
Accessories
Motor operator
For use with
IZM20, 32, 40, 63…
IN20, 32, 40, 63…
IN20, 32, 40, 63…
Instructions
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
Technical data
Rated control voltage [Us]
DC [Us]
24 V
Operating range
Pick-up voltage [Pick-up]
According to the IEC standard x Uc
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
| Feature Name | Feature Value |
|---|---|
| Type of switch drive (EF008233) | |
| Rated control supply voltage AC 50 Hz (EF003978) | None V |
| Rated control supply voltage AC 60 Hz (EF003979) | None V |
| Rated control supply voltage DC (EF003980) | None V |
| Voltage type for actuating (EF008242) |
