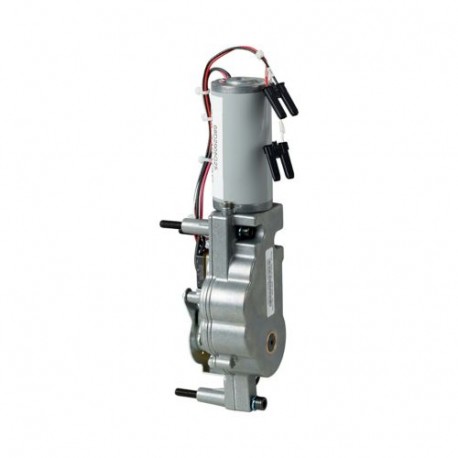

+IZMX-M40-230AD 156647 IZMX-M40-230AD EATON ELECTRIC Motor operator 208-240 VAC/DC

+IZMX-M40-230AD

156647

IZMX-M40-230AD

EATON - MOELLER

1 Pcs.

Motor operator 208-240 VAC/DC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller motor operator automates switchgear breakers to support complex facility automation and remote electrical management. By handling the physical strain of opening and closing heavy contacts, these units protect operators and streamline control routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V
  • Rated control supply voltage DC (EF003980): 220 V
  • Voltage type for actuating (EF008242): AC/DC

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX motor operator
Catalog Number
156647
Model Code
+IZMX-M40-230AD
EAN
4015081532377
Product Length/Depth
200 mm
Product Height
100 mm
Product Width
150 mm
Product Weight
0.905 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
AC/DC
Control voltage operating range
220 - 240 V AC (50/60 Hz)
0.85 - 1.1 x Us
220 - 250 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
220 V
Rated control supply voltage (Us) at AC, 50 Hz - max
240 V
Rated control supply voltage (Us) at AC, 60 Hz - min
220 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at DC - min
220 V
Rated control supply voltage (Us) at DC - max
250 V
Current rating - max
1.5 V AC / 1 V DC (maximum holding current)
Rated operational current
1 A DC
3 A AC 50/60 Hz
1.5 V AC / 1 V DC (maximum holding current)
Starting current rating
30 A AC 50/60 Hz, 5 A DC
Power consumption
250 W DC
400 AC / 250 DC
750 VA AC 50/60 Hz
Necessary time for charging spring-operated stored energy mechanism at 1 x Us
4 s AC 50/60 Hz
4 s DC

Technical data - mechanical

Number of actuation per minute - max
3
Switch drive type
Motor drive

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Used with
IZMX40...
INX40…

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
