EATON - MOELLER +IZMX-M40-110AD +IZMX-M40-110AD 124296 EATON ELECTRIC Motor operator 110-125 VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-M40-110AD 124296 EATON ELECTRIC Motor operator 110-125 VAC/DC

+IZMX-M40-110AD

124296

EATON - MOELLER

1 Pcs.

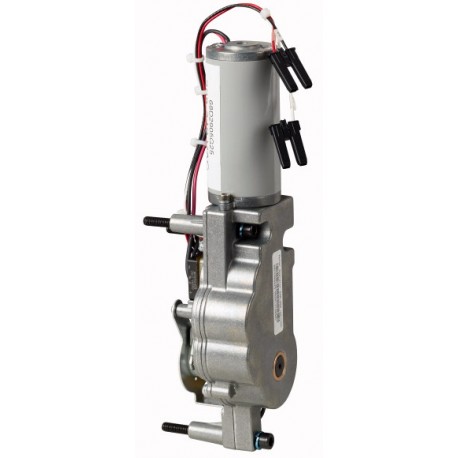

Motor operator 110-125 VAC/DC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An electromechanical motor operator allows technicians to cycle high-capacity electrical breakers from a remote location. This capability is vital for modern industrial substations and distribution boards requiring automated intervention capabilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V
  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): AC/DC

More info

▲
Motor operator 110-125 VAC/DC
The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch "spring-operated stored-energy mechanism charged."
[

Delivery program

Product range
Accessories
Accessories
Remote switching
Accessories
Motor operator
DC
Maximum operating frequency [Actuations/minute]
3
Please note - the circuit-breaker's switching frequency = 60/h
Rated control voltage [Us]
110 - 127 V AC 50/60 Hz
110 - 125 V DC V
Operating range [x US]
0,85 - 1,1 Factor
max. holding current [In]
3 AC / 2 DC A
max. pick-up current (35ms) [In]
9 AC / 7.5 DC A
max. continuous power [AC/DC]
425 AC / 275 DC VA/W
max. pull-in power (35ms) [AC/DC]
3 VA/W
For use with
IZMX40…
INX40…
Information about equipment supplied
A signaling switch for the labeled “Spring-operated stored energy mechanism tensioned” message is included as standard.
,

Technical data

Necessary time required for charging the spring-operated stored energy mechanism at 1 x Us
3 s AC 50/60 Hz
3 s DC
Rated operational current [In]
3 A AC 50/60 Hz
2 A DC A
Starting current
6 A AC 50/60 Hz
8 A DC A
Power consumption
450 VA AC 50/60 Hz
200 W DC
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Motor operator for power circuit-breaker (EC001030)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Electrical drive for circuit breakers ([email protected] [AKF010013])
Type of switch drive
Motor drive
Rated control supply voltage Us at AC 50HZ
110 - 127 V
Rated control supply voltage Us at AC 60HZ
110 - 127 V
Rated control supply voltage Us at DC
110 - 125 V
Voltage type for actuating
AC/DC
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
