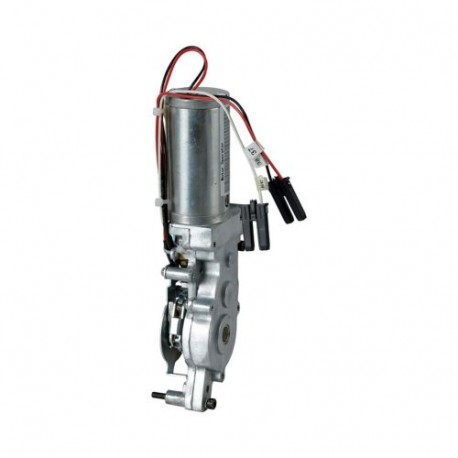

+IZMX-M16-110AD 124265 EATON ELECTRIC Motor operator, 110-125 VAC/DC

+IZMX-M16-110AD

124265

EATON - MOELLER

1 Pcs.

Motor operator, 110-125 VAC/DC The motor automatically tensions the spring force storage mechanism for remote or local actuation, with signaling switch zspring-operated stored-energy mechanism charged.z

Automation > Motor operator for power circuit-breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller +IZMX-M16-110AD motor operator provides motorized control for heavy-duty air circuit breakers, facilitating automated energy distribution workflows.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch drive (EF008233): Motor drive
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V
  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): AC/DC

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX motor operator
Catalog Number
124265
Model Code
+IZMX-M16-110AD
EAN
4015081218707
Product Length/Depth
200 mm
Product Height
100 mm
Product Width
150 mm
Product Weight
0.905 kg
Compliances
RoHS conform

Delivery program

Type
Accessory
Accessory/spare part type
Remote switching

Technical data - electrical

Voltage type
AC/DC
Control voltage operating range
110 - 127 V AC (50/60 Hz)
0.85 - 1.1 x Us
110 - 125 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
110 V
Rated control supply voltage (Us) at AC, 50 Hz - max
127 V
Rated control supply voltage (Us) at AC, 60 Hz - min
110 V
Rated control supply voltage (Us) at AC, 60 Hz - max
127 V
Rated control supply voltage (Us) at DC - min
110 V
Rated control supply voltage (Us) at DC - max
125 V
Current rating - max
2 V AC / 1 V DC (maximum holding current)
Rated operational current
1 A DC
2 A AC 50/60 Hz
2 V AC / 1 V DC (maximum holding current)
Starting current rating
6 A AC 50/60 Hz, 5 A DC
Power consumption
280 AC / 150 DC
280 VA AC 50/60 Hz
150 W DC
Pick-up power consumption at 35 ms - max
3 VA/W
Necessary time for charging spring-operated stored energy mechanism at 1 x Us
3 s DC
3 s AC 50/60 Hz

Technical data - mechanical

Number of actuation per minute - max
3
Switch drive type
Motor drive

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Used with
INX16…
IZMX16…

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
