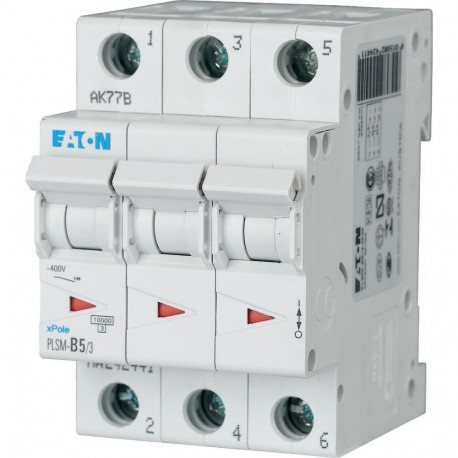

PLSM-B5/3-MW 242441 EATON ELECTRIC Over current switch, 5A, 3 p, type B characteristic
PLSM-B5/3-MW
242441
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Over current switch is designed to automatically interrupt electrical power when current levels surpass safe operational thresholds, guarding against circuit overloads. These protective switches are commonly installed in control enclosures and electrical distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): B
- Number of poles (total) (EF008618): 3
- Number of protected poles (EF005548): 3
- Rated current (EF000227): 5 A
- Rated voltage (EF000228): 400 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): No
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
- Additional equipment possible (EF008148): Yes
