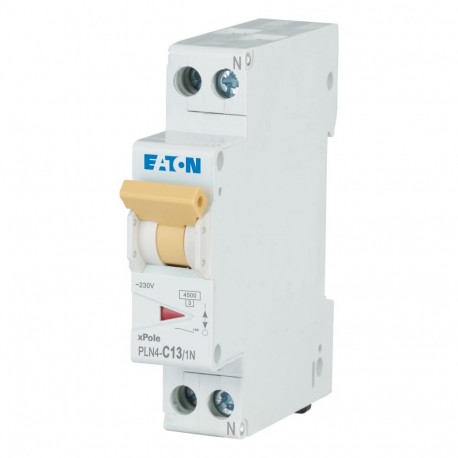

PLN4-C13/1N-MW 263191 EATON ELECTRIC Over current switch, 13A, 1pole+N, type C characteristic
PLN4-C13/1N-MW
263191
EATON - MOELLER
1 Pcs.
Automation > Miniature circuit breaker (MCB)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller PLN4-C13/1N-MW 263191 EATON ELECTRIC Over current switch is an essential protective device engineered to safeguard electrical circuits from overloads and short circuits. Such protective switches are commonly integrated into commercial and residential distribution boards to automatically interrupt fault currents and protect downstream wiring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-in depth (EF000218): 70.5 mm
- Release characteristic (EF000889): C
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 1
- Rated current (EF000227): 13 A
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 440 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Voltage type (EF000187): AC
- Frequency (EF000416): 50 Hz
- Power loss (EF005387): 2.3 W
- Current limiting class (EF002568): 3
- Flush-mounted installation (EF007517): No
- Concurrently switching neutral conductor (EF005997): Yes
- Over voltage category (EF002569): 3
- Pollution degree (EF002570): 2
