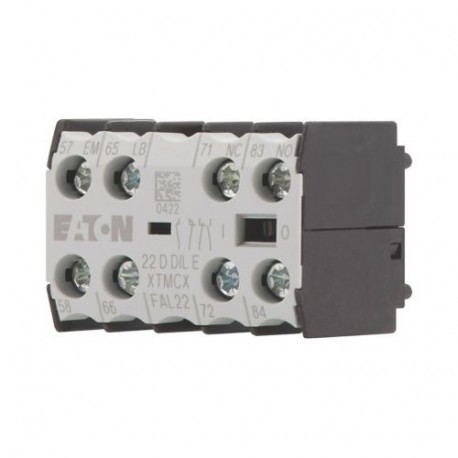

22DDILE 049823 Y7-49823 EATON ELECTRIC Auxiliary contact, 1N/O+1N/O early+1N/C+1N/C late, surface mounting, ..
22DDILE
049823
Y7-49823
EATON - MOELLER
5 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller 22DDILE 049823 Y7-49823 EATON ELECTRIC Auxiliary contact, 1N/O+1N/O early+1N/C+1N/C late, surface mounting, .. is a specialized auxiliary contact block used in complex control circuits where precise timing sequences are required during switching operations. Engineers install these modules on switching devices to manage staggered contact closures and openings within automated systems.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Number of contacts as normally closed contact (EF008255): 2
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 4 A
- Type of electric connection (EF003961): Screw connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
UL
CSA
CSA Class No.: 3211-03
UL 508
CE
UL File No.: E29184
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-4-1
VDE 0660
Features & Functions
General
10,000,000 Operations (AC operated)
20,000,000 Operations (DC operated)
150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A)
10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
1 x (0.75 - 1.5) mm²
1 x (0.75 - 2.5) mm²
2, Terminal screw, Pozidriv screwdriver
Electrical rating
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
300 V AC, Between auxiliary contacts, According to EN 61140
Short-circuit rating
Conventional thermal current Ith
Switching capacity
0.5 A, 250 V DC, (UL/CSA)
P300, DC operated (UL/CSA)
Contacts
62 in combination with DILER-40(-G)
44 in combination with DILER-22
1 (normally open, early make)
