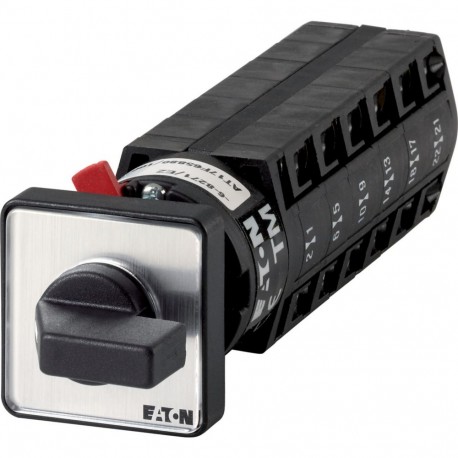

EATON - MOELLER TM-6-SOND*/EZ TM-6-SOND*/EZ 907760 Y7-907760 EATON ELECTRIC Non-standard switch, TM, 10 A, centre mounting, 6 contact unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-6-SOND*/EZ 907760 Y7-907760 EATON ELECTRIC Non-standard switch, TM, 10 A, centre mounting, 6 contact unit..

TM-6-SOND*/EZ

907760

Y7-907760

EATON - MOELLER

10 Pcs.

Non-standard switch, TM, 10 A, centre mounting, 6 contact unit(s) TM-6-SOND*/EZ Eaton Moeller® series TM Non-standard switch, TM, 10 A, centre mounting, 6 contact unit(s) Non-standard switch, Product range: Non-standard switch, Standards: IEC/EN 60947, VDE 0660, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, customized version according to form, mini rotary switch TM, SOND reorder, Degree of Protection: Front IP65, Design: center mounting, 6 contact unit(s), Rated uninterrupted current: Iu= 10 A

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller TM-6-SOND*/EZ non-standard switch functions as a specialized control device used within industrial control panels to manually direct circuit paths or manage specific machine operations. Built for reliable manual intervention, these compact components allow operators to interface directly with complex electrical systems safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 0
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm
  • Degree of protection (IP), front side (EF003118): IP65

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Non-standard switch
Catalog Number
907760
Model Code
TM-6-SOND*/EZ
Product Length/Depth
134 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.09 kg
Certifications
IEC/EN 60947-5-1
VDE 0660
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
