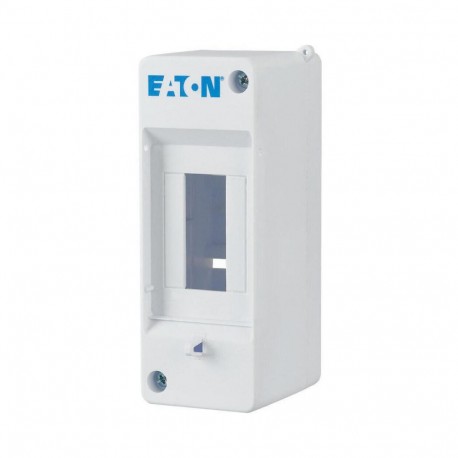

MINI-2 177066 Y7-177066 EATON ELECTRIC MINI-2 Mini compact distribution board, 1-row 2 SU, IP20
MINI-2
177066
Y7-177066
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Compact Distribution Boxes
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Mini compact distribution board MINI-2 by Eaton Moeller serves as a space-saving housing for small-scale modular electrical setups and control relays. Mini enclosures offer convenient mounting points for localized circuit protection in compact spaces.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Surface mounted
- Number of rows (EF000266): 1
- Width in number of modular spacings (EF002950): 2
- Cover model (EF009212): With notch
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Plastic
- Built-in depth (EF000218): 70 mm
- Built-in height (EF000332): 0 mm
- Built-in width (EF000846): 0 mm
- Inner depth (EF001131): 60 mm
- Earthing terminal block (EF015776): No
- Neutral terminal block (EF015777): No
- DIN-rail (EF001134): Yes
- With mounting plate (EF000118): No
More info
▲General specifications
Delivery program
Signal white (RAL 9003)
Technical data - electrical
Technical data - mechanical
Surface mounted (plaster)
Surface mounting
IK05 (impact resistance)
Other
Temperature-rise verification as per IEC 60890
Design verification as per IEC 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Installation distribution board
MINI distribution board
