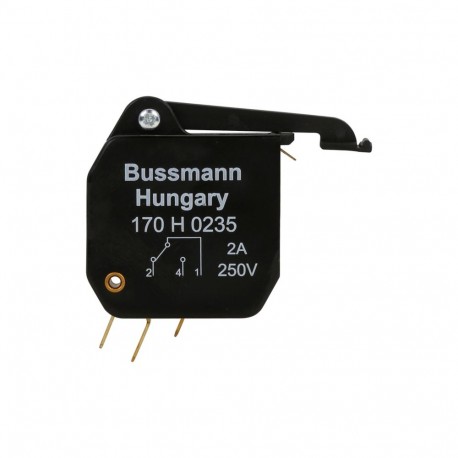

EATON - MOELLER 5A 250V MICROSWITCH T1 X0-3 5A 250V MICROSWITCH T1 X0-3 170H0235 EATON ELECTRIC Microswitch, ultra-fast, 2 A, AC 250 V, type T indicator.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

5A 250V MICROSWITCH T1 X0-3 170H0235 EATON ELECTRIC Microswitch, ultra-fast, 2 A, AC 250 V, type T indicator..

5A 250V MICROSWITCH T1 X0-3

170H0235

170H0235

EATON - MOELLER

12 Pcs.

Microswitch, ultra-fast, 2 A, AC 250 V, type T indicator, 6.3 x 0.8 lug dimensions MICROSWITCH T1 5A 250V X0-3 Eaton Bussmann series high speed microswitch, 2 A, AC 250 V, type T indicator, 6.3 x 0.8 lug dimensions, 700V (UL), 690V (IEC), Fuse Accessory Fuse accessory, Microswitch, high speed, 2 A, AC 250 V, type T indicator, 6.3 x 0.8 lug dimensions, indicator style T for microswitch

Automation > Accessories/spare parts for Low Voltage HRC fuse bases
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

5A 250V MICROSWITCH T1 X0-3 170H0235 EATON ELECTRIC Microswitch, ultra-fast, 2 A, AC 250 V, type T indicator.. is an ultra-fast microswitch equipped with type T indicator functionality, designed to provide dependable auxiliary switching and blown-fuse detection. These units are commonly integrated into industrial power electronics and high-current protection equipment to monitor fuse status and trigger remote alarms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Bussmann series high speed microswitch
Catalog Number
170H0235
Model Code
5A 250V MICROSWITCH T1 X0-3
EAN
5027590439053
UPC
051712799324
Product Length/Depth
57 mm
Product Height
47 mm
Product Width
20 mm
Product Weight
30.41666667 g
Compliances
Contact factory
CE Marked
GoST-R
RoHS Compliant

Electrical data

Amperage Rating
2 A
Voltage rating
250 V

Product specification

Suitable for
DIN 43653 Type T sizes 00 to 3 fuses
DIN 43620 aR sizes 1* to 2 fuses
Flush end Type T size 00 fuse

Product Datasheet
